Architecture Overview

Flux is designed with a three-layer architecture for maximum performance and flexibility.

Architecture Diagram

Flux Architecture

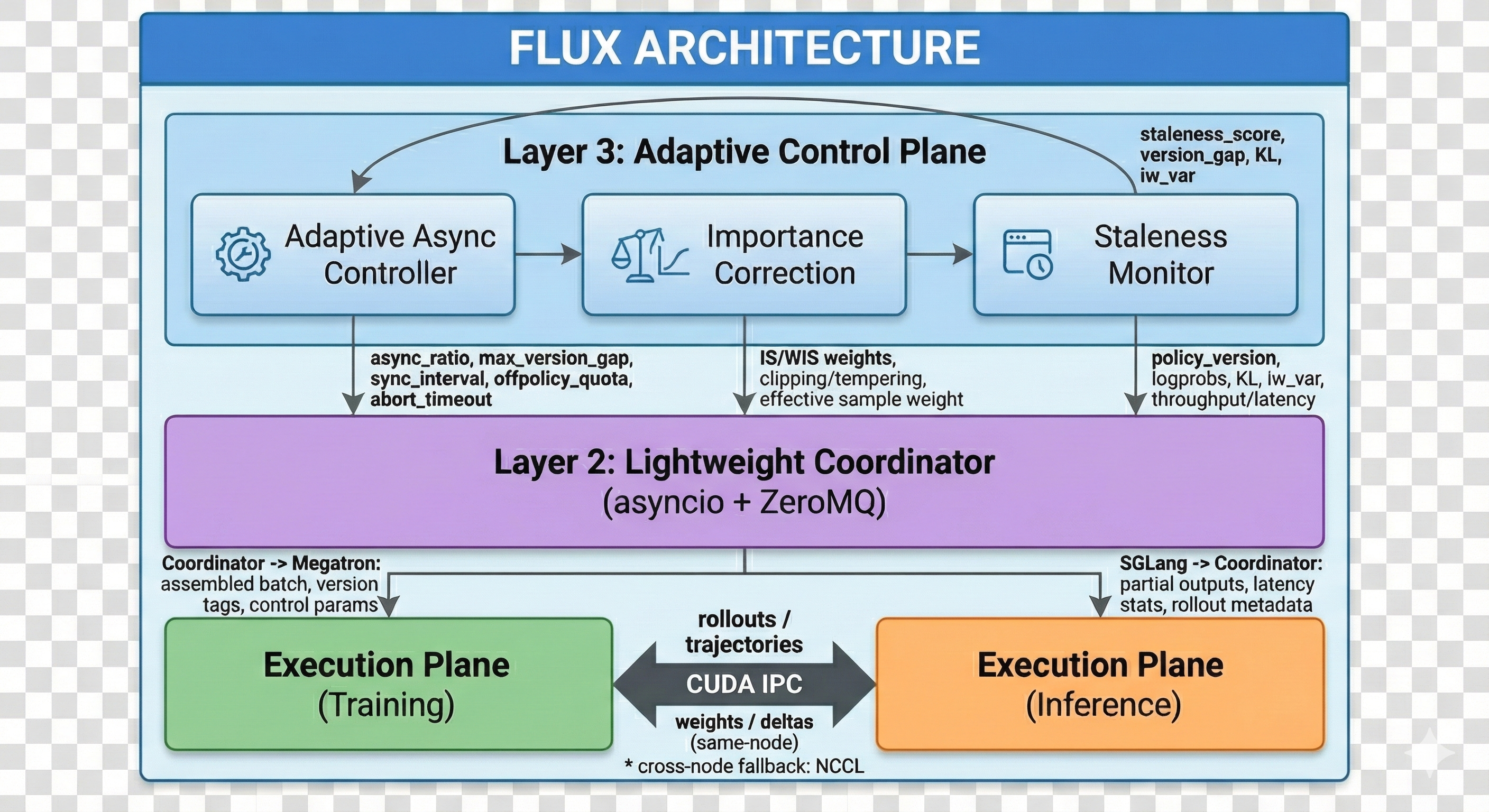

Flux three-layer architecture with adaptive async control

Three-Layer Design

graph TB
    subgraph Layer3["Layer 3: Adaptive Control"]
        AC[Adaptive Async Controller]
        MG[Mode Gate]
        SM[Staleness Monitor]
        BC[Batch Composer]
    end

    subgraph Layer2["Layer 2: Coordinator"]
        CO[FluxCoordinator]
        WS[Weight Sync]
        TS[Trajectory Store]
    end

    subgraph Layer1["Layer 1: Training Backends"]
        TB[TrainingBackend ABC]
        ME[MegatronEngine]
        TF[TransformersBackend]
        SG[SGLang Client]
    end

    Layer3 --> Layer2
    Layer2 --> Layer1

Components

Layer 1: Training Backends

Flux uses a native trainer contract (TrainingBackend ABC) that enables GPU-direct training:

from flux.training import TrainingBackend, GPUBatch, TrainStepResult

class TrainingBackend(ABC):
    @property
    def version(self) -> int: ...
    @property
    def device(self) -> torch.device: ...

    def initialize(self, config) -> None: ...
    def train_step(self, batch: GPUBatch) -> TrainStepResult: ...
    def get_state_dict(self) -> dict[str, torch.Tensor]: ...
    def set_state_dict(self, state_dict) -> None: ...

Available Backends:

Backend Class Use Case
Transformers TransformersBackend Development, single/multi-GPU with HuggingFace models
Megatron MegatronEngine Production with 3D parallelism (TP + PP + DP)
FSDP FSDPBackend Memory-efficient large model training (planned)
DeepSpeed DeepSpeedBackend ZeRO optimization stages (planned)

GPUBatch - The frozen, device-owned batch format:

@dataclass(frozen=True)
class GPUBatch:
    input_ids: torch.Tensor          # [B, seq]
    attention_mask: torch.Tensor     # [B, seq]
    behavior_log_probs: torch.Tensor # [B, seq]
    rewards: torch.Tensor            # [B] or [B, seq]
    version_gaps: torch.Tensor       # [B]
    # Optional: loss_mask, advantages, ref_log_probs, etc.

Layer 2: Coordinator

The FluxCoordinator orchestrates the training loop:

  • Trajectory Store: Hot buffer (GPU) + cold store (CPU) with version gating
  • Weight Sync: CUDA IPC (same-node) or HTTP (cross-node) synchronization
  • Checkpoint Management: Best model tracking, distributed checkpointing

Layer 3: Adaptive Control

Mode Gate (State Machine)

The ModeGate controls sync/async transitions:

from flux.controller import AsyncMode, ModeGate, ModeGateState

class AsyncMode(Enum):
    SYNC_BARRIER = auto()    # Waiting for in-flight rollouts
    ASYNC_RUNNING = auto()   # Normal async operation
    THROTTLED = auto()       # Backpressure active

class ModeGate:
    def evaluate(
        self,
        staleness: float,
        capacity: int,
        buffer_fill_ratio: float,
        in_flight: int,
    ) -> ModeGateState: ...

    def can_submit_rollout(self) -> bool: ...
    async def enforce_barrier(self, wait_fn) -> bool: ...

State Transitions:

Condition From To Action
staleness > threshold ASYNC_RUNNING SYNC_BARRIER Wait for in-flight
capacity <= 0 ASYNC_RUNNING THROTTLED Pause rollouts
buffer > 90% ASYNC_RUNNING THROTTLED Pause rollouts
In-flight drained SYNC_BARRIER ASYNC_RUNNING Resume
Capacity recovered THROTTLED ASYNC_RUNNING Resume

PID Controller

Dynamically adjusts async_ratio based on staleness:

error = target_staleness - measured_staleness
output = kp * error + ki * ∫error + kd * d(error)/dt
async_ratio = clip(async_ratio + output, [0.1, 0.9])

Smart Batch Composer

Creates optimized training batches with:

  • Length bucketing: Minimize padding waste
  • Staleness balancing: Stratified sampling by version gap
  • Curriculum ordering: Progressive difficulty

Data Flow

┌─────────────────────────────────────────────────────────────────────────┐
│                           Training Loop                                   │
└─────────────────────────────────────────────────────────────────────────┘

1. Mode Gate Check
   │
   ├─► SYNC_BARRIER: Wait for in-flight, sync weights
   ├─► THROTTLED: Skip rollout submission
   └─► ASYNC_RUNNING: Continue

2. Submit Rollouts (if mode allows)
   │
   └─► SGLang generates responses → Trajectory Store

3. Sample Training Batch
   │
   └─► SmartBatchComposer → GPUBatch

4. Training Step
   │
   └─► TrainingBackend.train_step(batch) → TrainStepResult

5. Update Controllers
   │
   ├─► Staleness measurement
   ├─► PID controller update
   └─► Mode Gate threshold update

6. Conditional Weight Sync
   │
   └─► If staleness_manager.should_sync() → sync to SGLang

Configuration

Backend selection via config:

# Model and backend selection
model_path: "Qwen/Qwen3-8B"
training_backend: "transformers"  # or "megatron", "fsdp", "deepspeed"

# Training parameters (used by all backends)
learning_rate: 1e-6
weight_decay: 0.01
gradient_accumulation_steps: 4
batch_size: 32

# Megatron-specific settings (used when training_backend: "megatron")
megatron:
  tp_size: 4
  pp_size: 2
  dp_size: 1

# Mode gate settings
adaptive_async:
  target_staleness: 0.15
  staleness_threshold: 0.3
  capacity_low_watermark: 0
  buffer_high_watermark: 0.9

Backend-Specific Configuration

The TransformersBackend reads training parameters from the top-level config (model_path, learning_rate, etc.). For Megatron-specific settings like tensor parallelism, use the nested megatron: block.

For detailed design, see Technical Specification.
